CityCom 80501HF DC/DC converter

This is an electronic module mounted under the driver’s seat that converts the ~48V supply from the battery pack to 12-14V suitable for onboard accessories like lighting etc.

Resources:

• Schematic drawn from nature:
  • SVG image
  • KiCad source
• Component symbols used in the schematic, made up

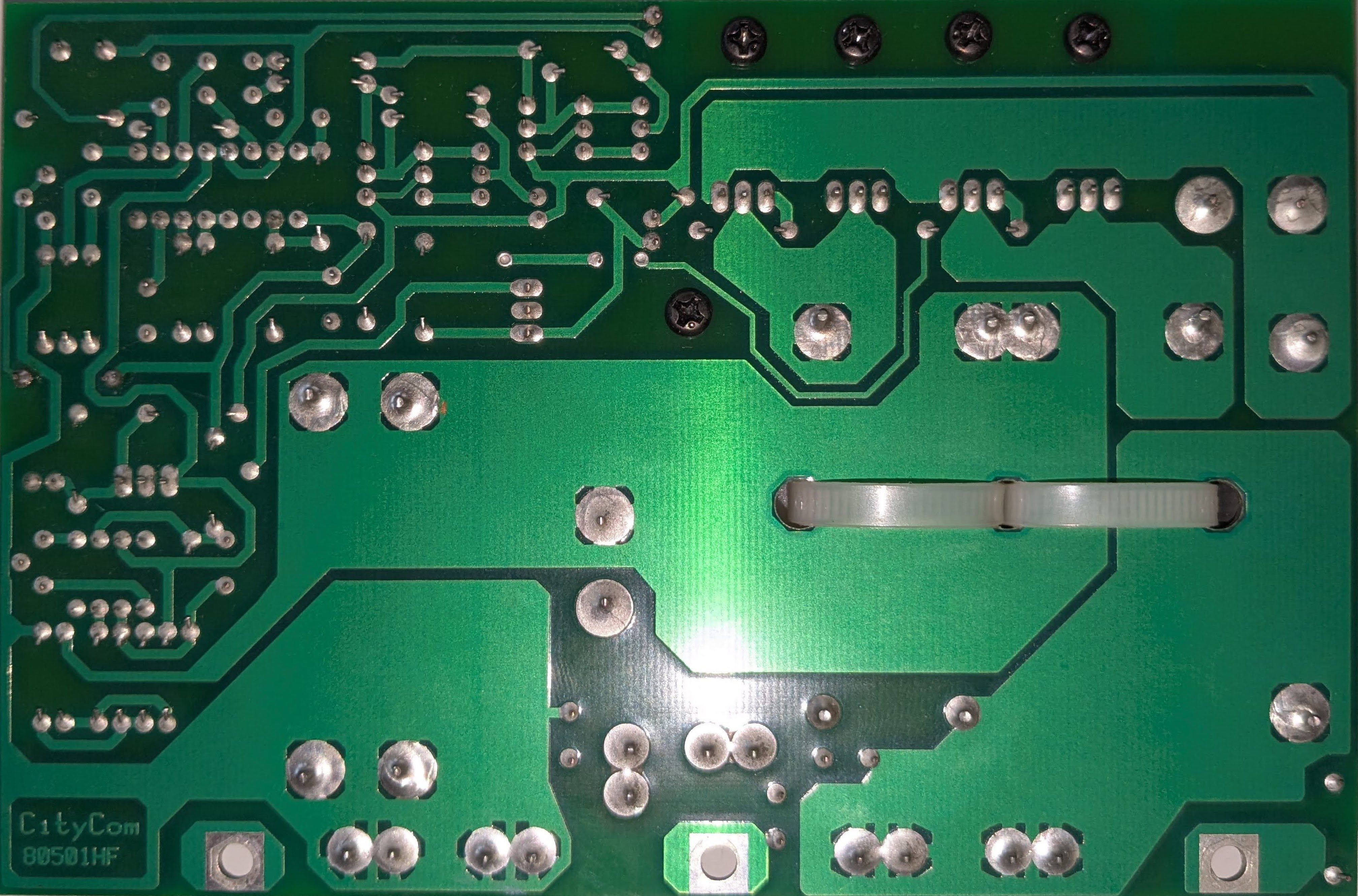

• PCB Photos for reference:
  • front
  • back
