City-EL axle dimensions

With measurement photographs and references to technical drawings.

Table of contents:

• Axle
  • Distance between main bearings
• Clutch (right) side
  • Axle diameter
  • Bearing reduction
    • diameter
    • length
    • length without the thread
  • Centering hole
  • Chamfer
  • Clutch key
    • width
    • height
    • thickness
  • Thread
    • diameter
    • inner diameter
    • pitch
    • length
    • undercut diameter
    • undercut length
• Wheel spline (left) side
  • Axle diameter
  • Bearing reduction
    • diameter
    • length
    • length without the thread
  • Spline
    • inner diameter
    • outer diameter
    • length
    • straight segment length
  • Chamfer
  • Thread
    • diameter
    • inner diameter
    • pitch
    • length
    • undercut diameter
    • undercut length
• Motor keyways
  • Thrige
    • width
    • height
    • depth
  • Perm
    • Left keyway
      • distance to bearing
      • width
      • height
      • depth
    • Right keyway
      • width
      • height
      • depth

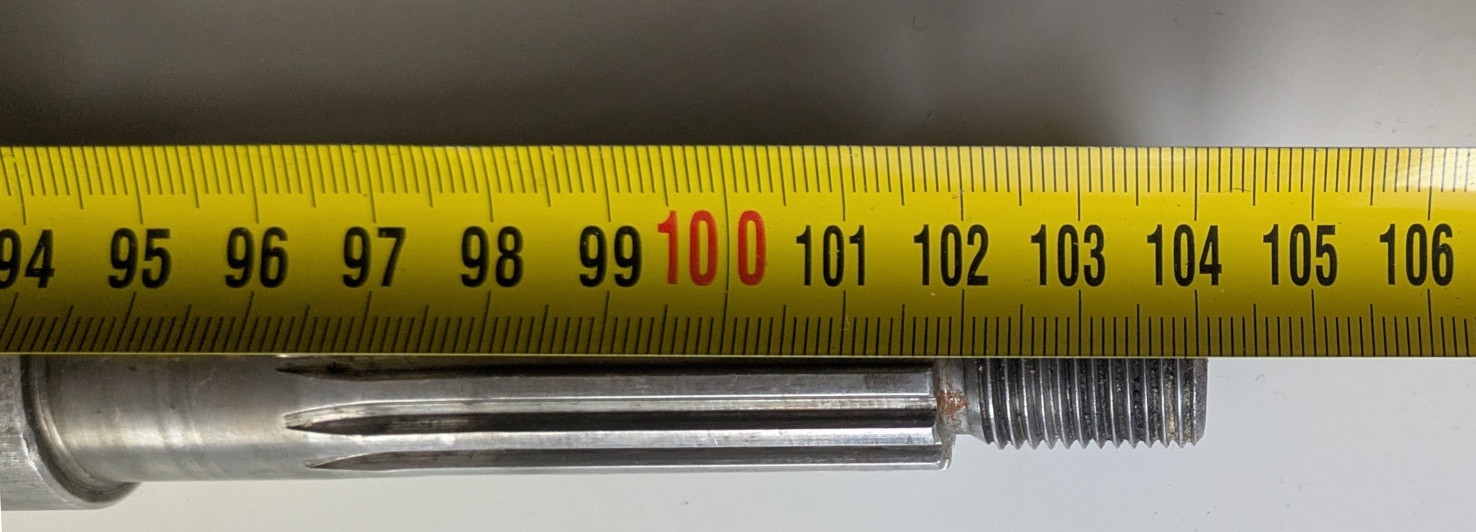

Axle

length: 1041 mm drawing: 1039.5 mm

Distance between main bearings

• measurements: 1041 - 107 - 100 = 834 mm

• drawing: 1039.5 - 106.5 - 100 = 833 mm

Clutch (right) side

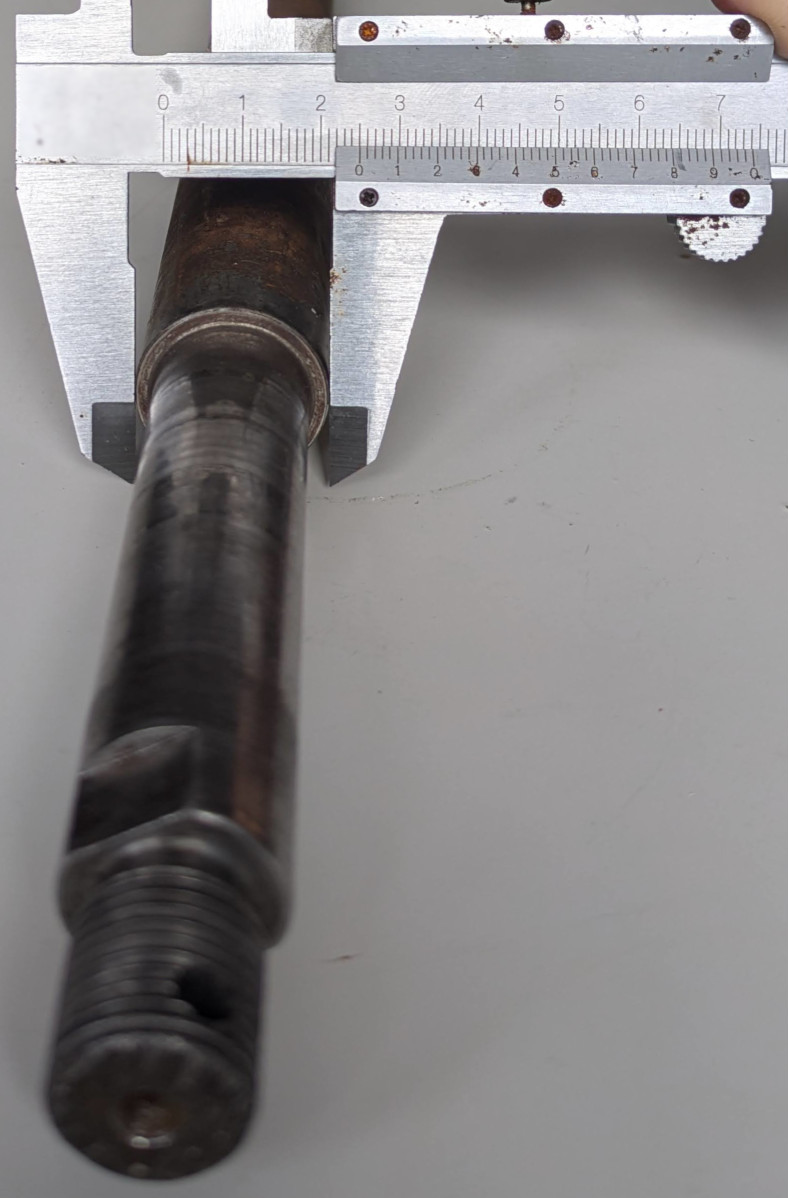

Axle diameter

25 mm

drawing

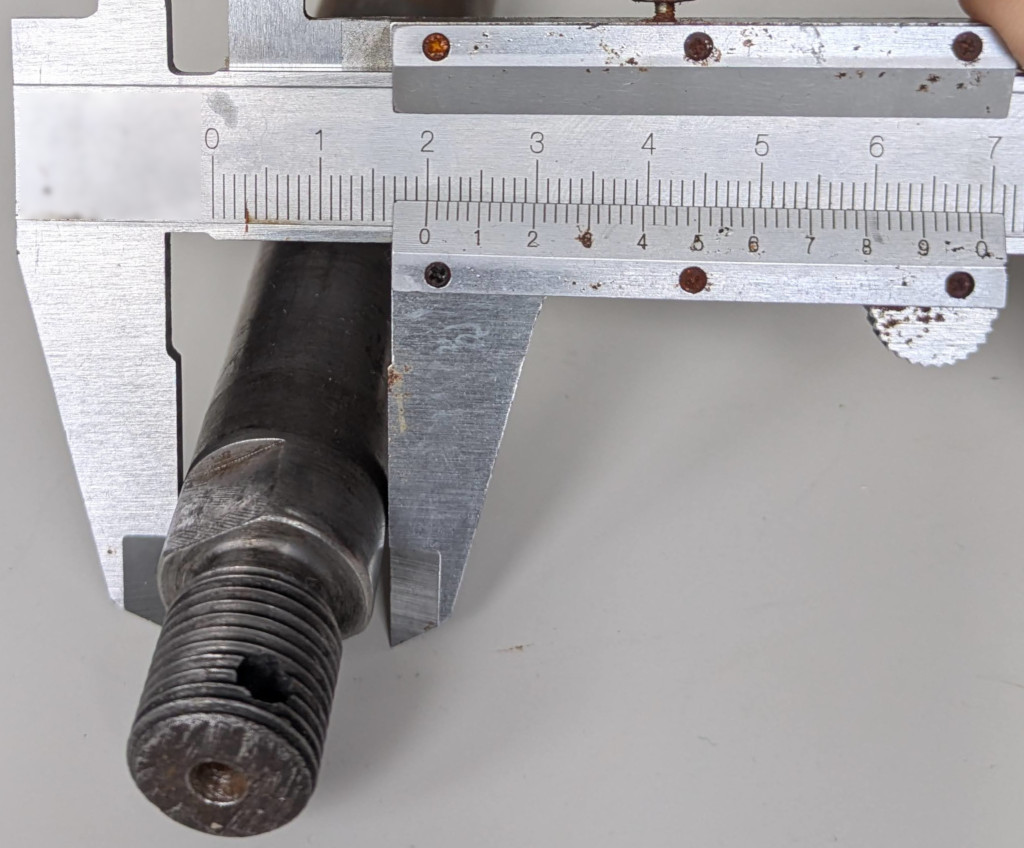

Bearing reduction

diameter

20 mm drawing

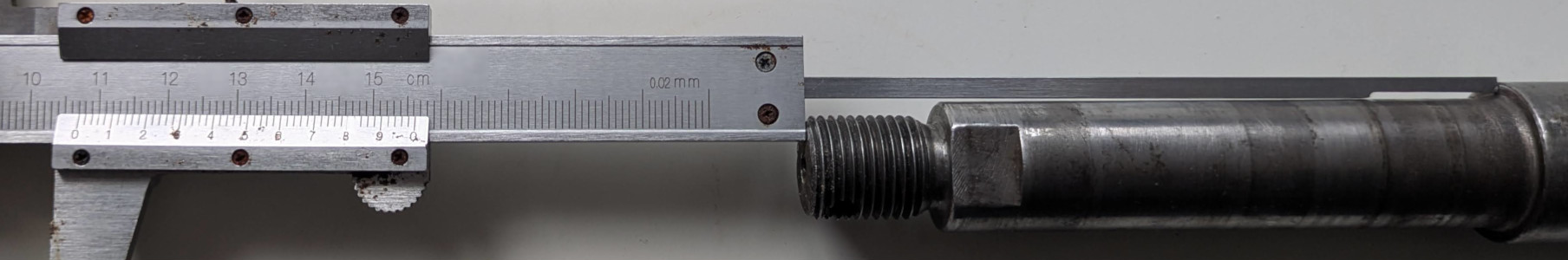

length

107 mm drawing: 106.5 mm

length without the thread

• measurements: 107 - 20.4 = 86.6 mm

• drawing: 106.5 - 20 = 86.5 mm

Centering hole

outer diameter: 5 mm

drawing: 3.35 mm

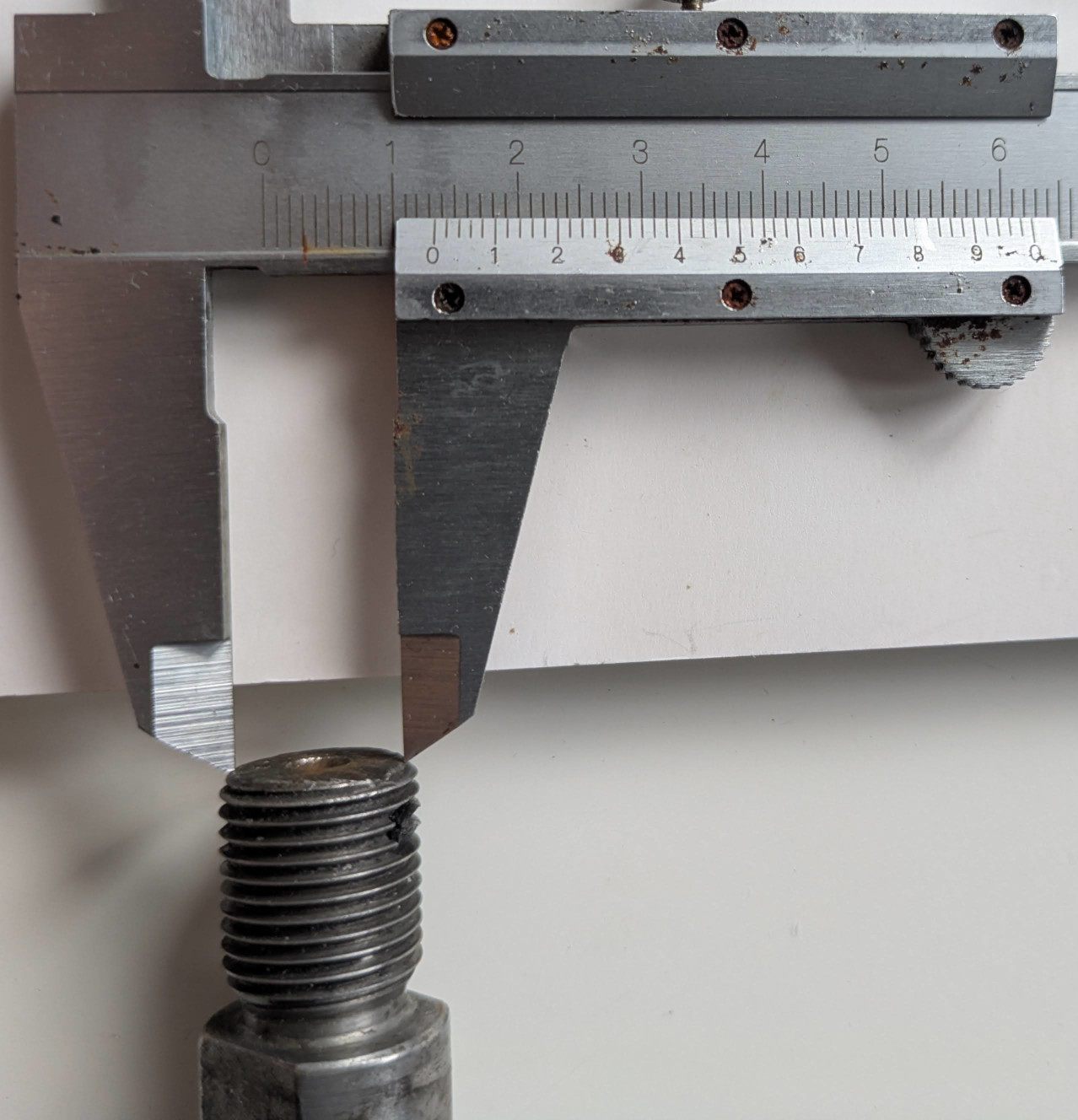

Chamfer

inner diameter: 13.4 mm

Clutch key

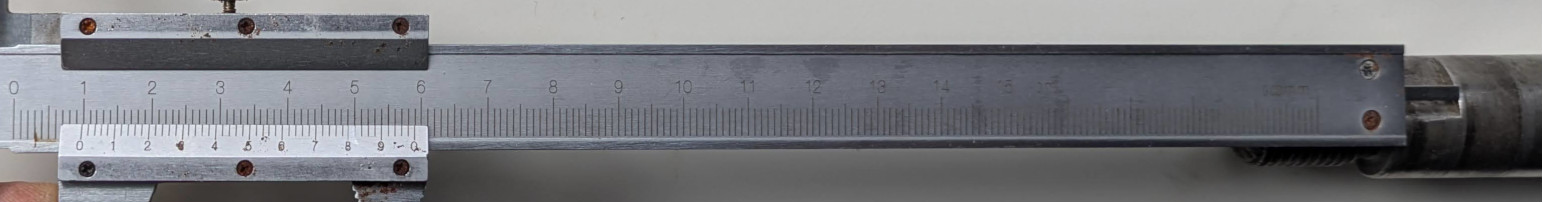

width

9.9 mm drawing: 29 - 20 = 9 mm

height

12 mm

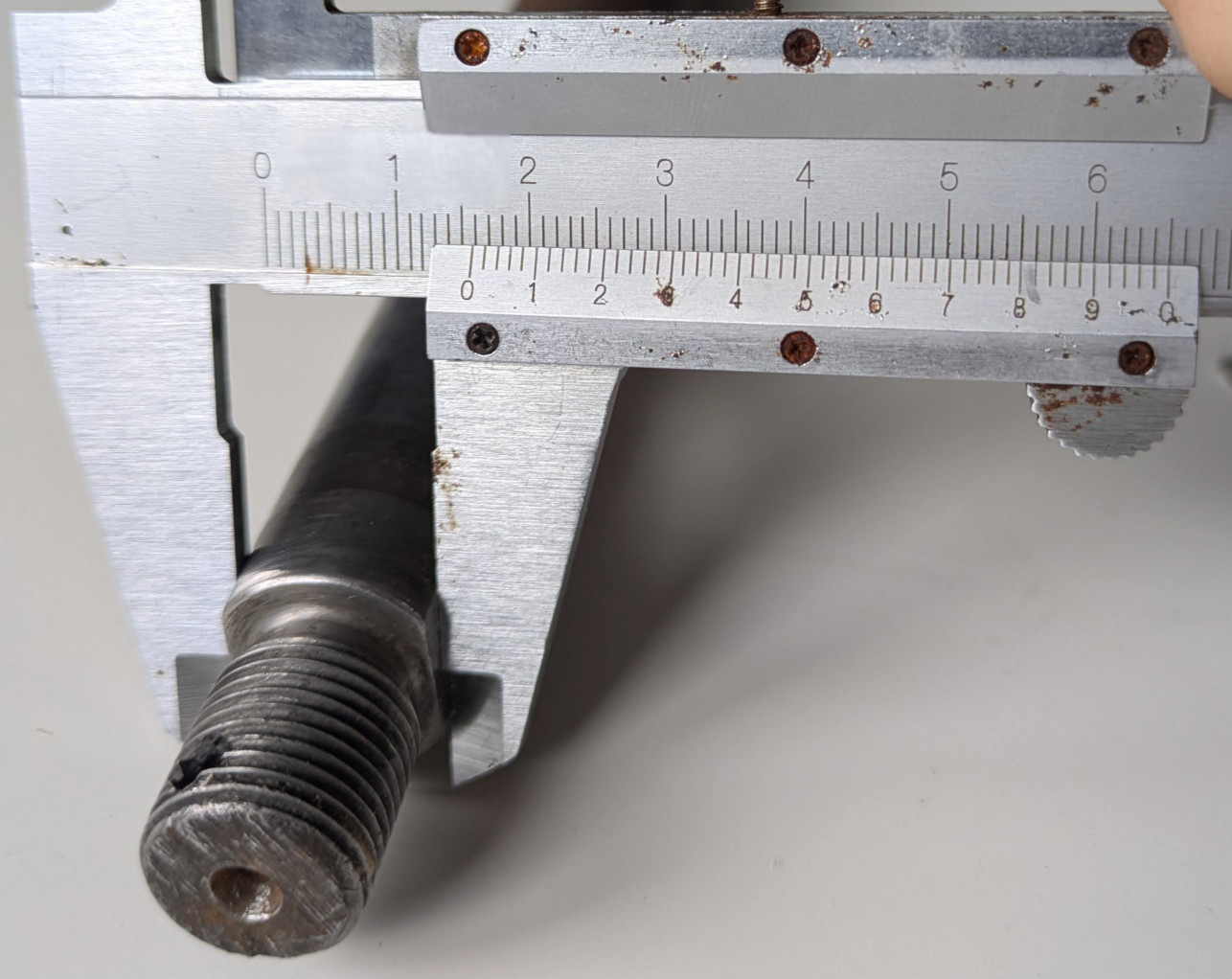

thickness

15.9 mm drawing: 16 mm

Thread

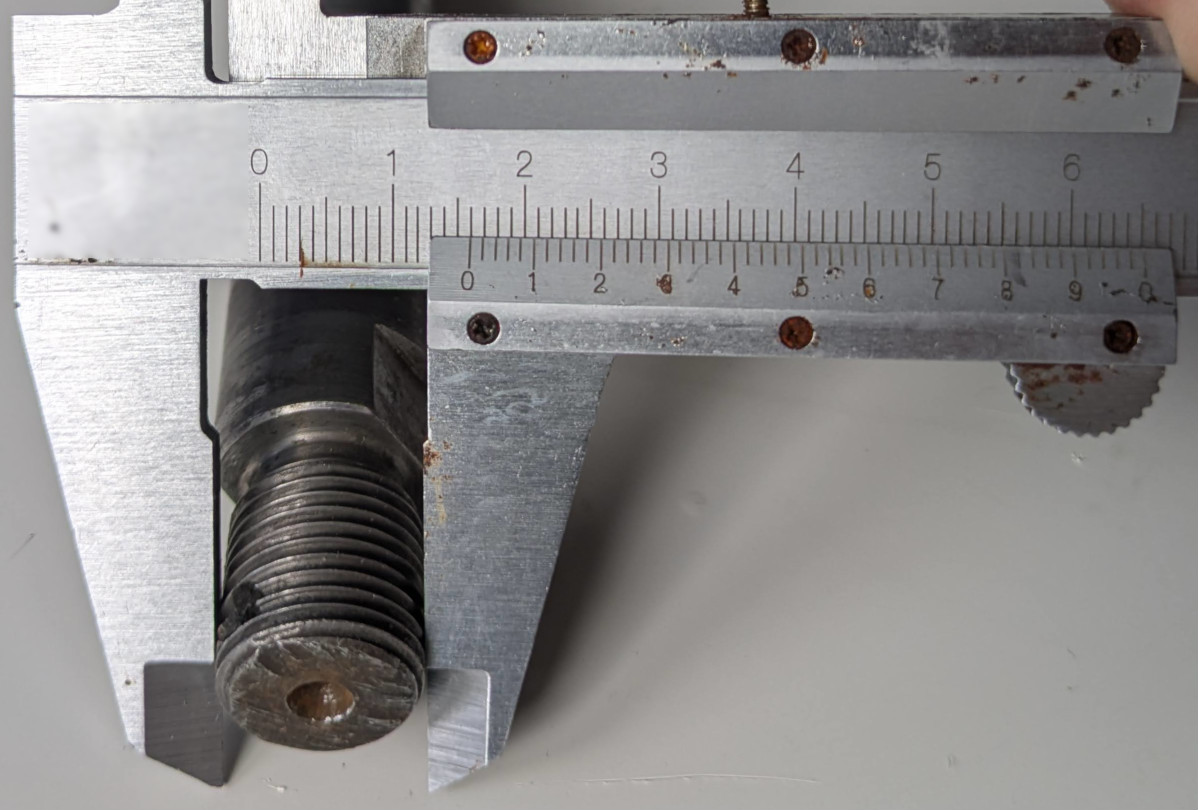

diameter

16 mm drawing

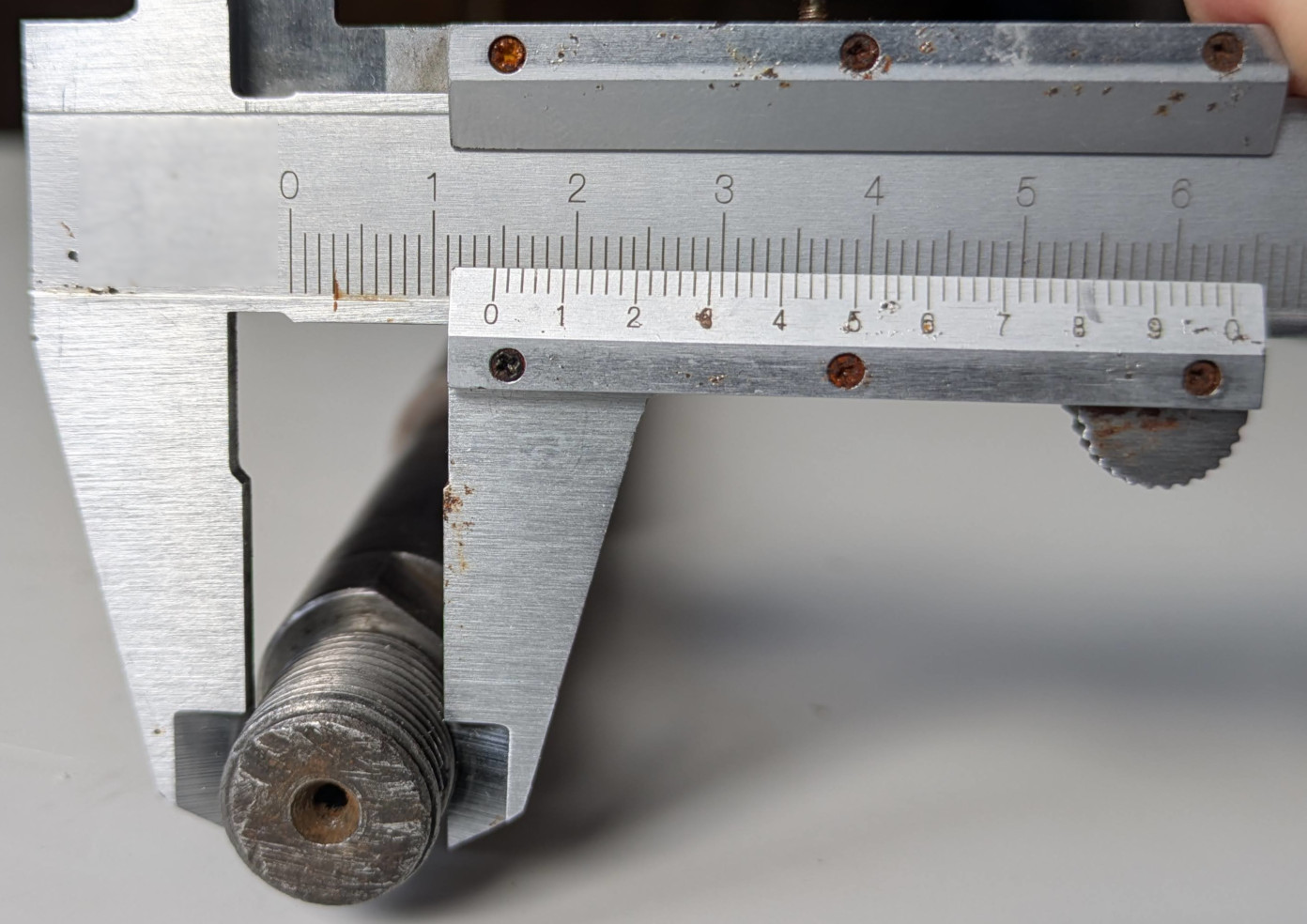

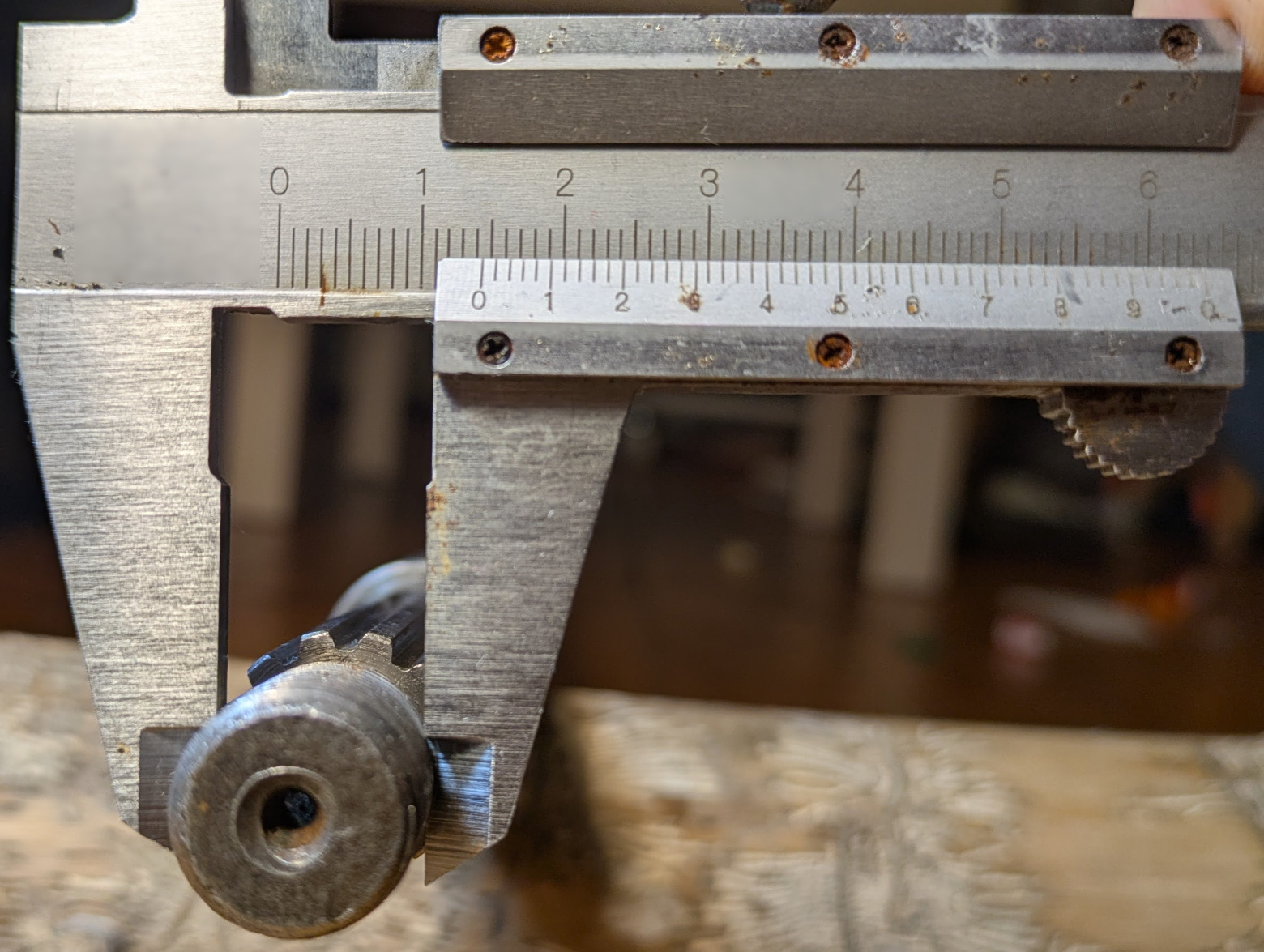

inner diameter

14.4 mm

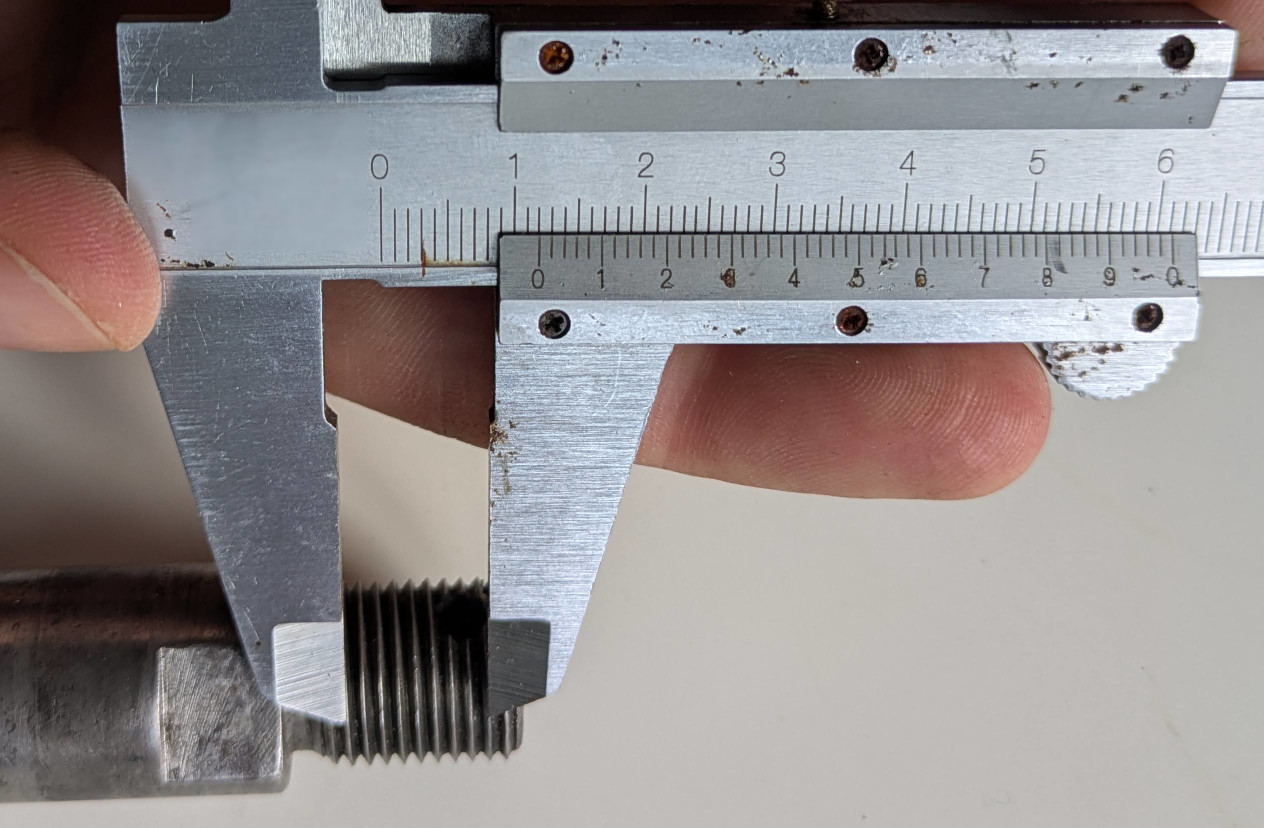

pitch

12 / 8 = 1.5 mm drawing

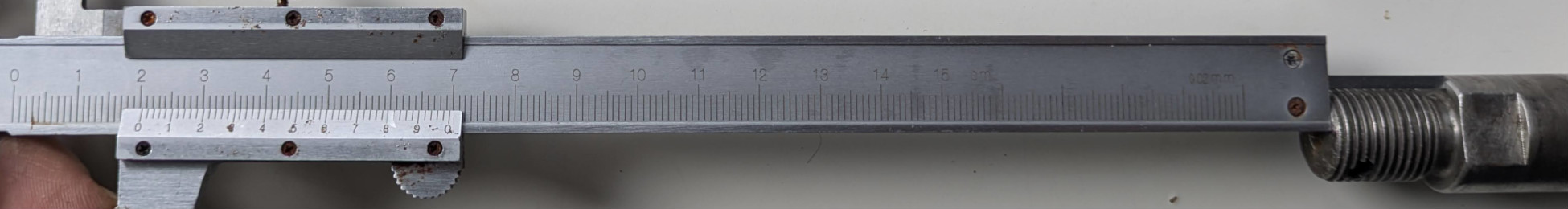

length

20.4 mm drawing: 20 mm

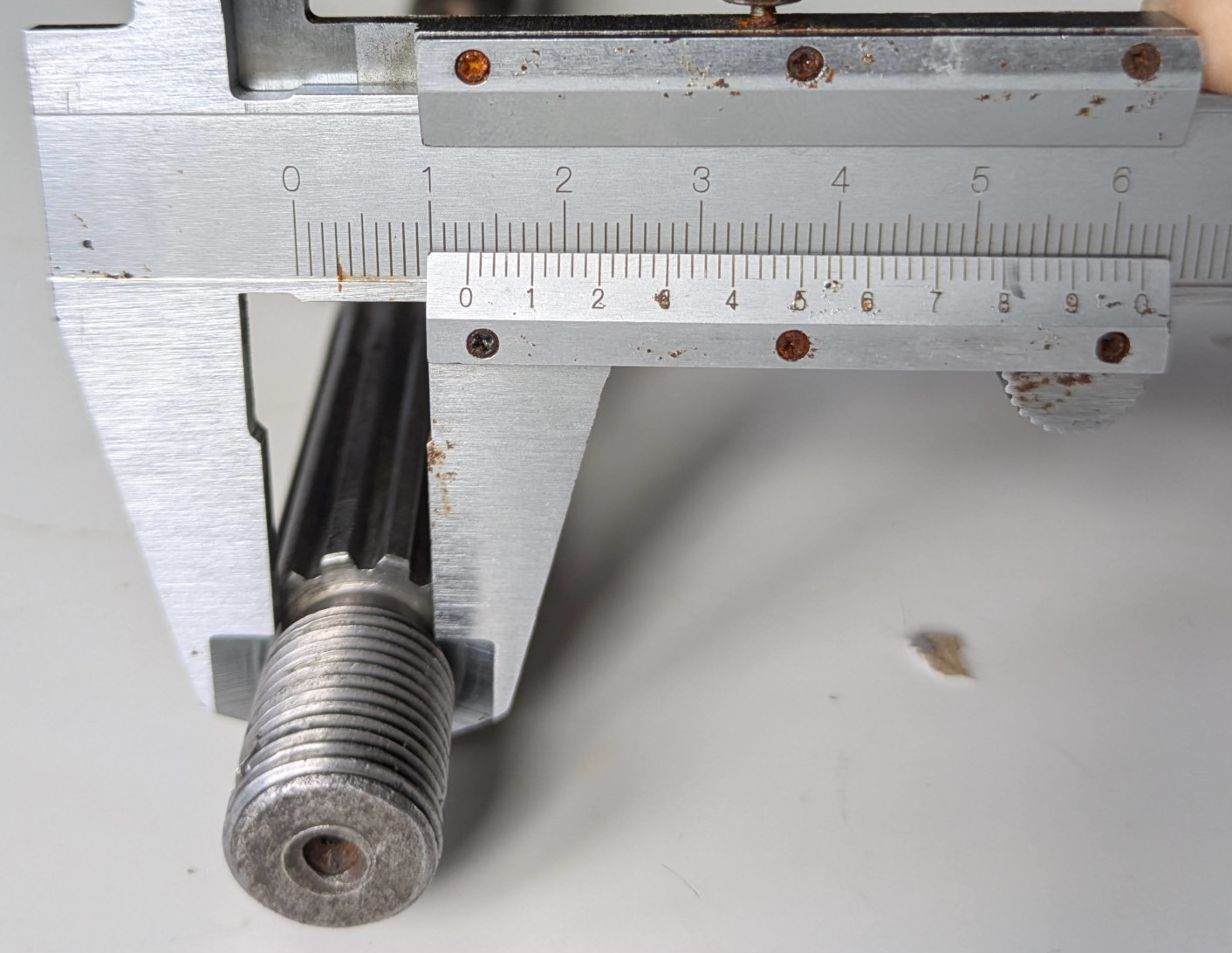

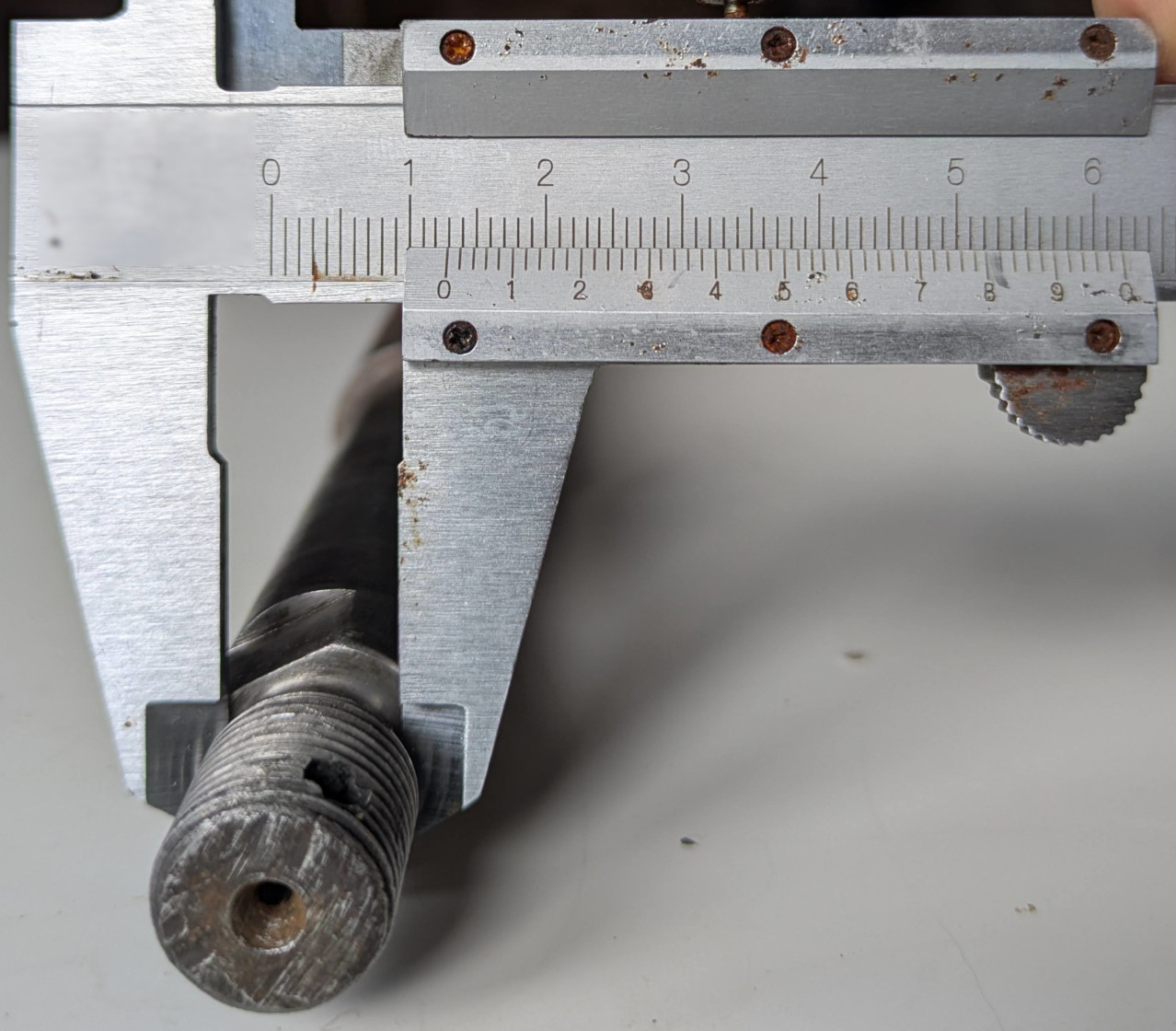

undercut diameter

12.9 mm

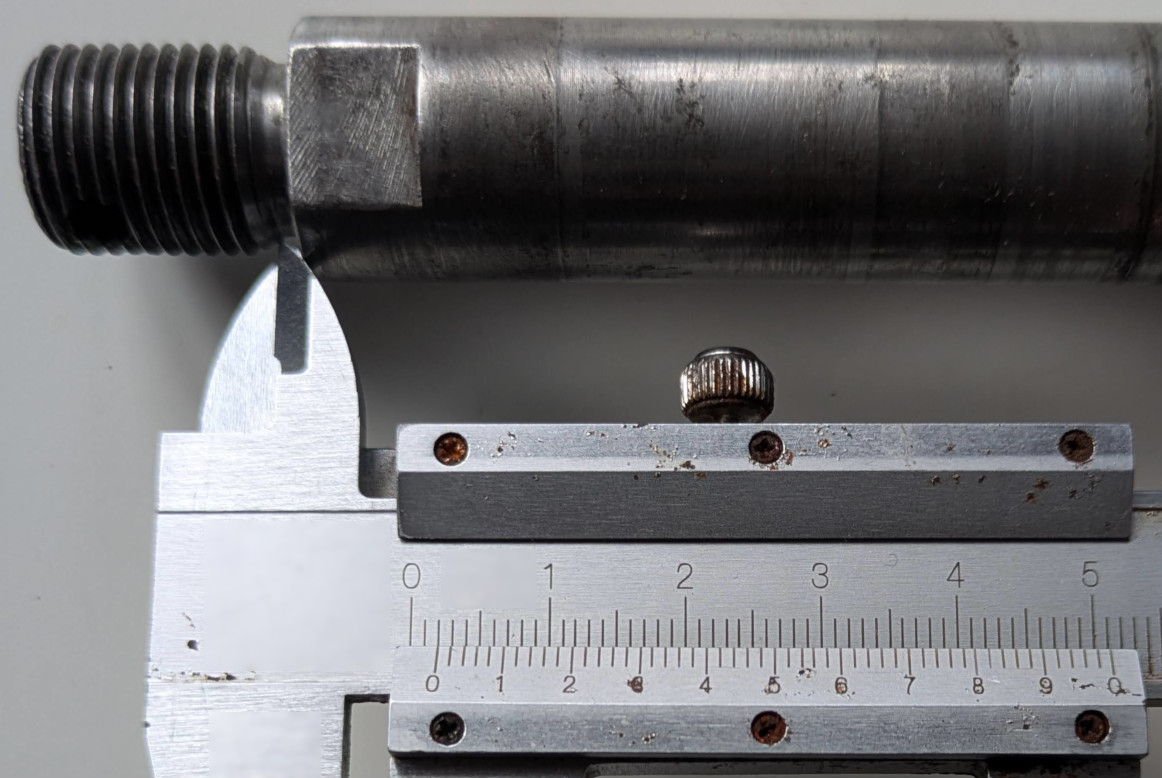

undercut length

2 mm

Wheel spline (left) side

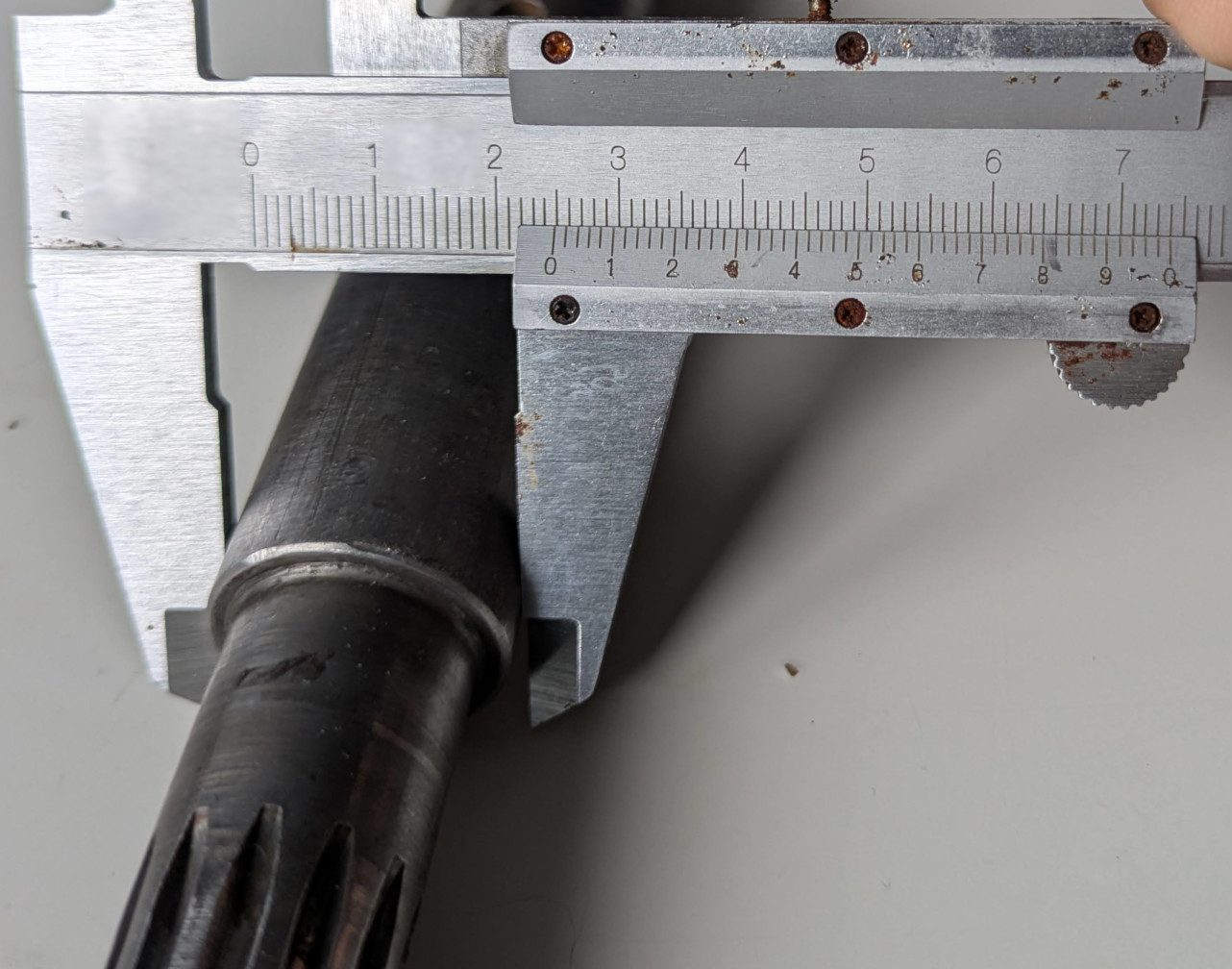

Axle diameter

24.8 mm drawing: 25 mm

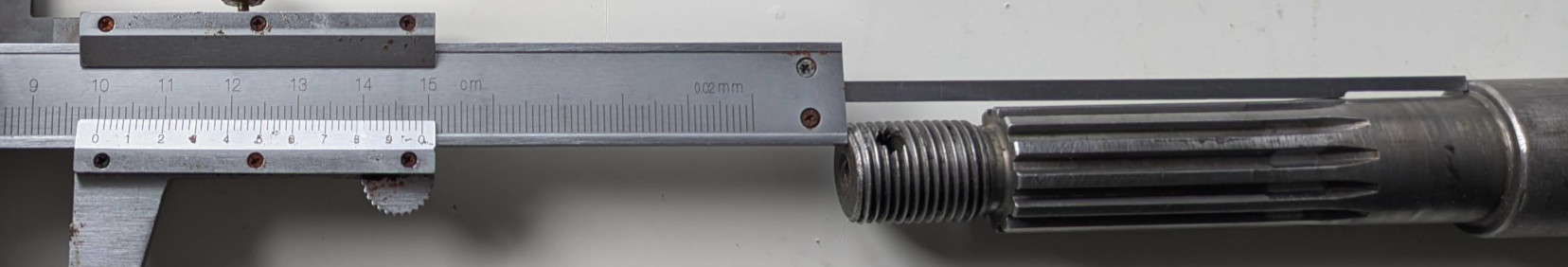

Bearing reduction

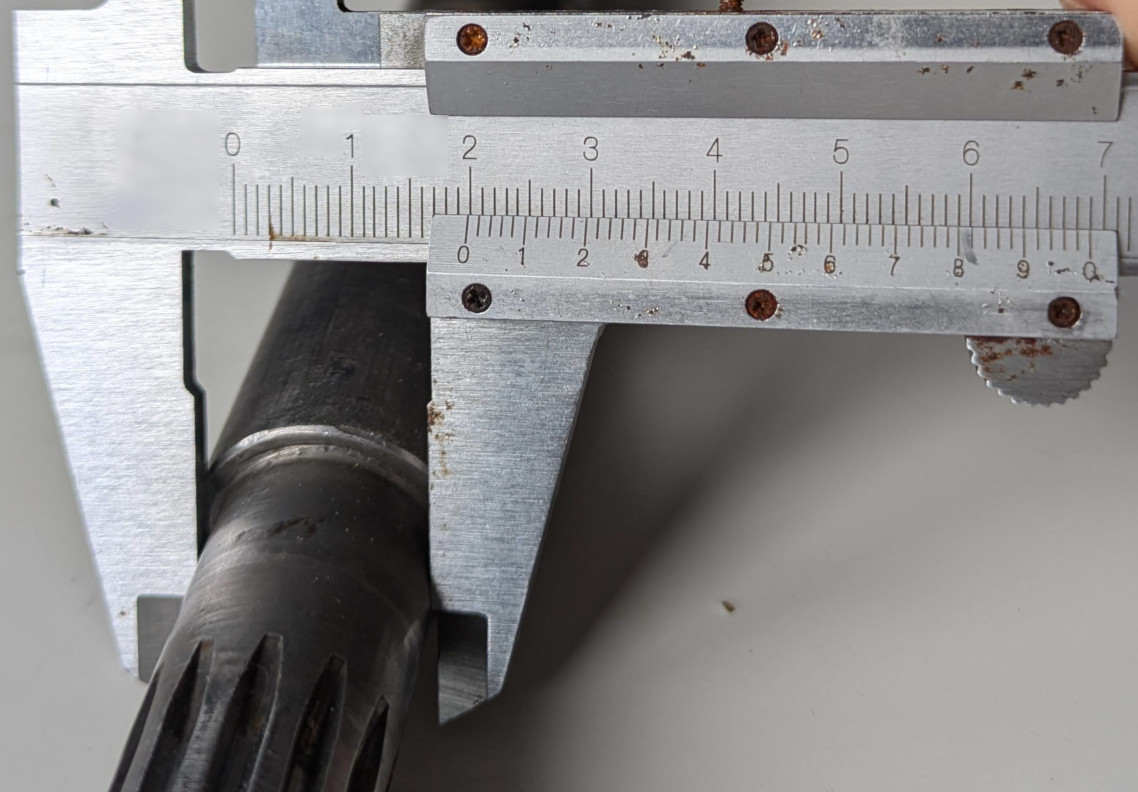

diameter

19.9 mm drawing: 20 mm

length

100 mm drawing

length without the thread

• measurements: 100 - 23.55 = 76.45 mm

• drawing: 100 - 24.5 = 75.5 mm

Spline

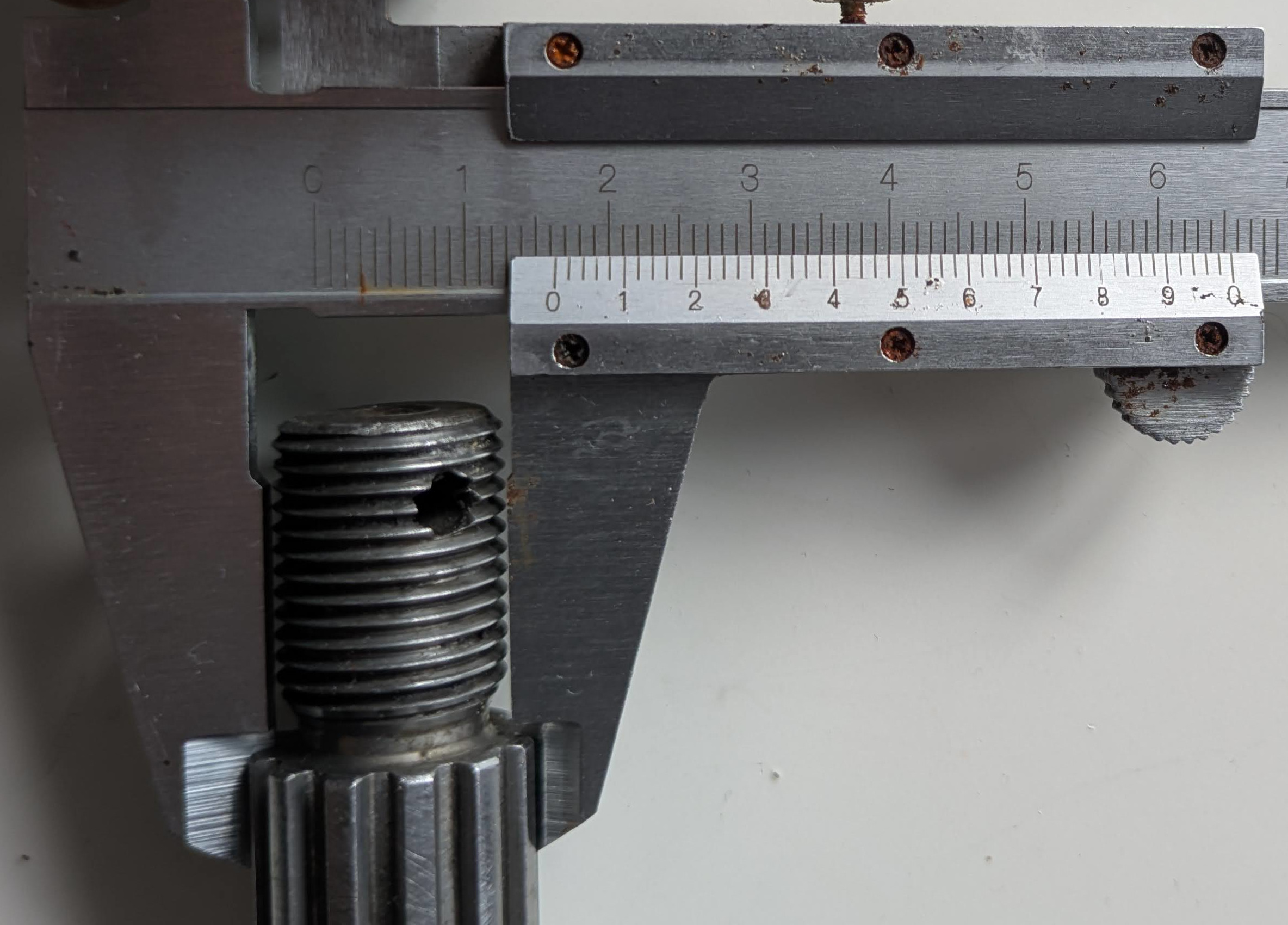

inner diameter

16.4 mm drawing: 16.3 mm

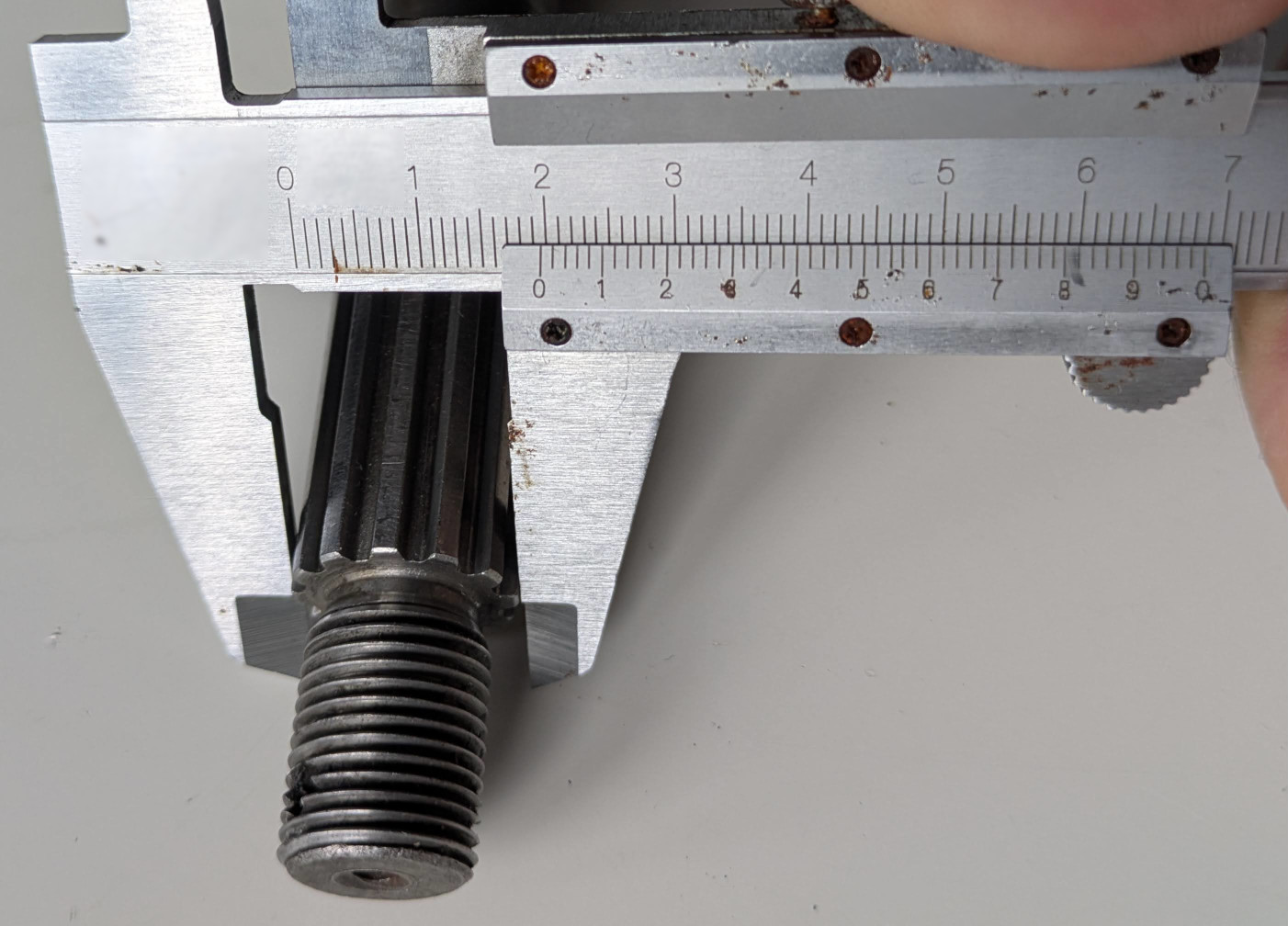

outer diameter

19.7 mm

• axle drawing: 20 mm
• spline drawing: 19.55 mm with a suggestion to increase to 20 mm

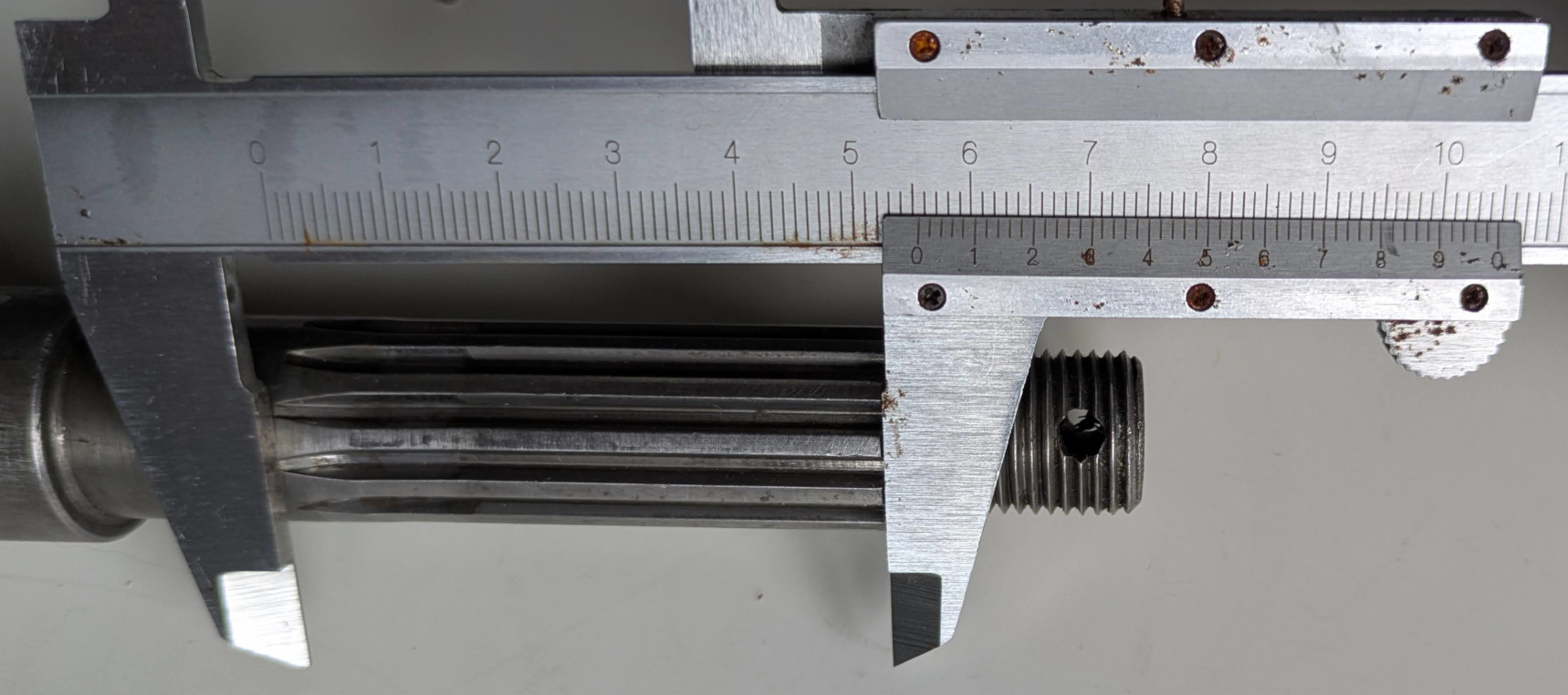

length

55.5 mm

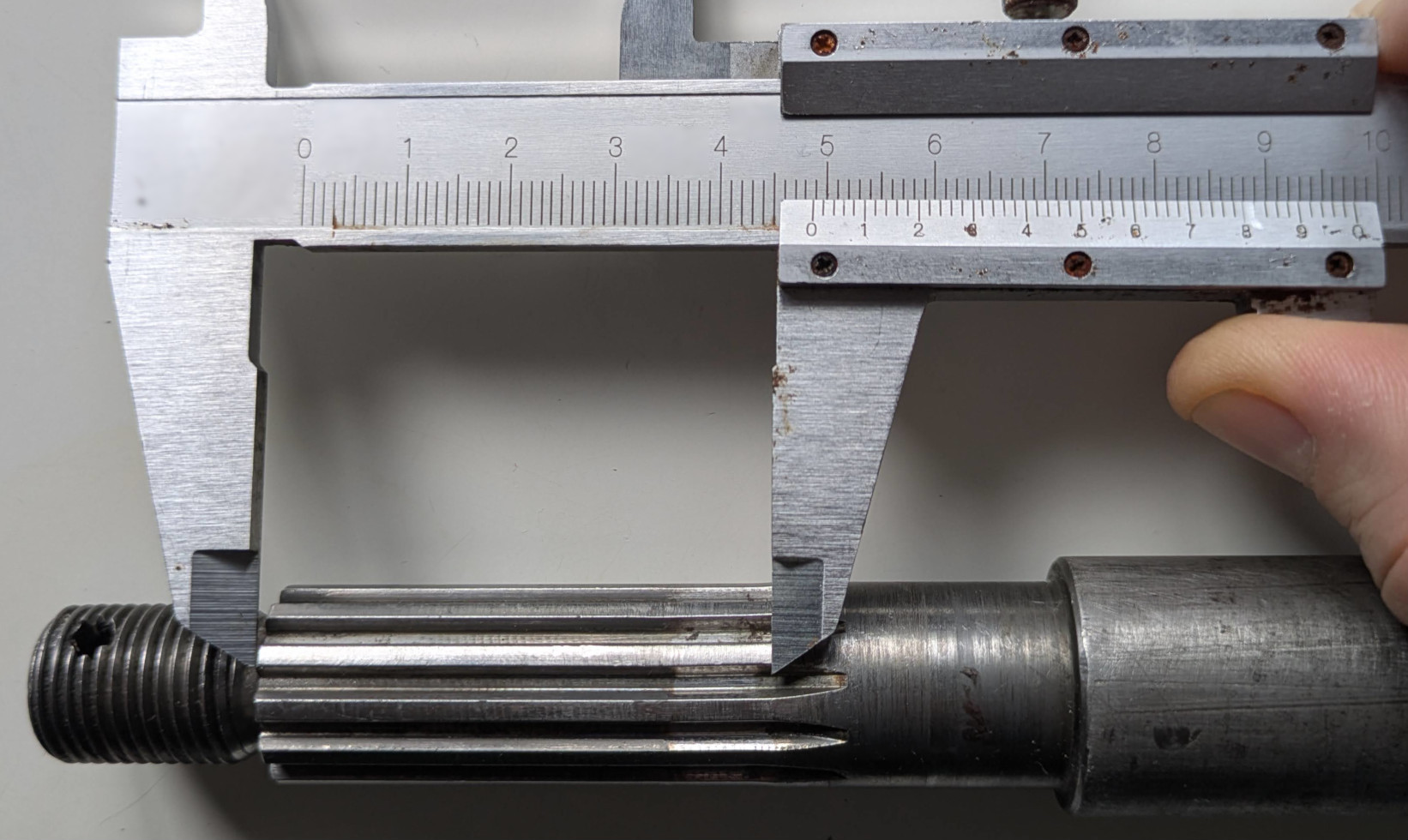

straight segment length

48.7 mm drawing: 70 - 24.5 = 45.5 mm

Chamfer

inner diameter: 13.4 mm

Thread

diameter

16 mm drawing

inner diameter

14.35 mm

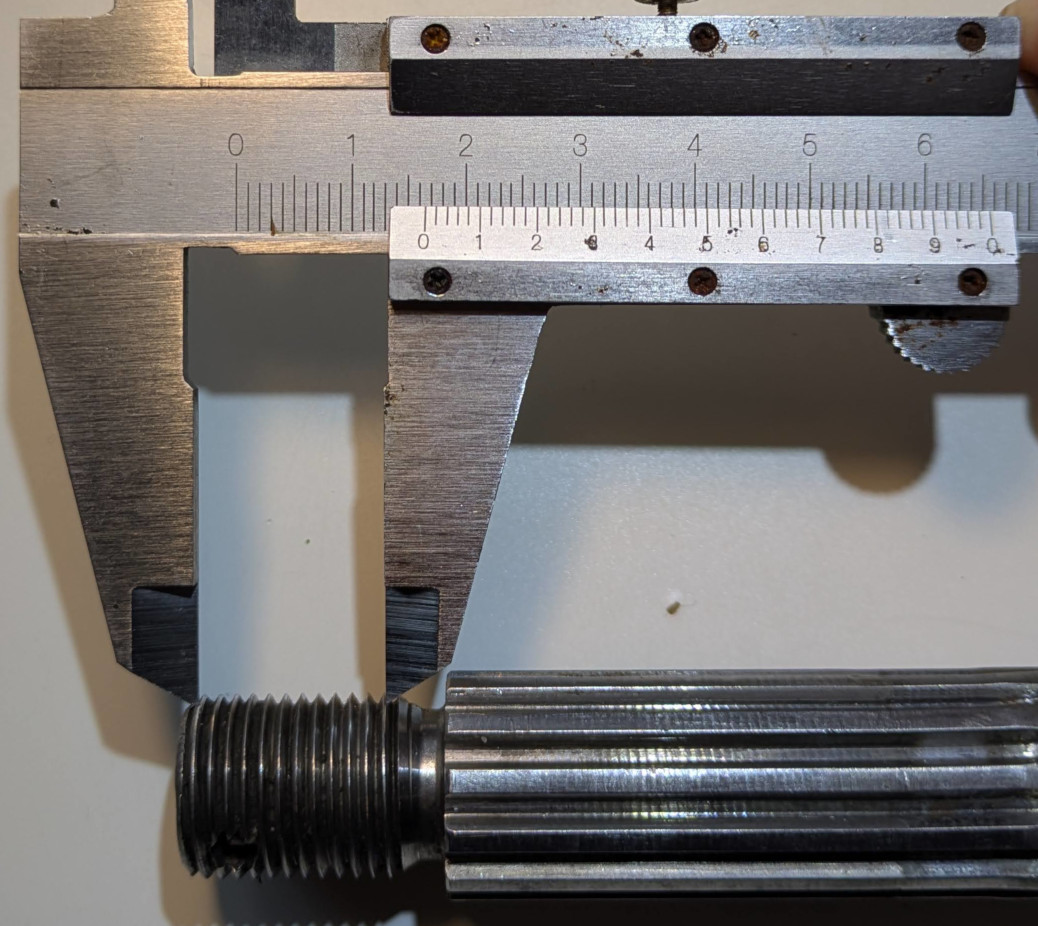

pitch

16.5 / 11 = 1.5 mm drawing

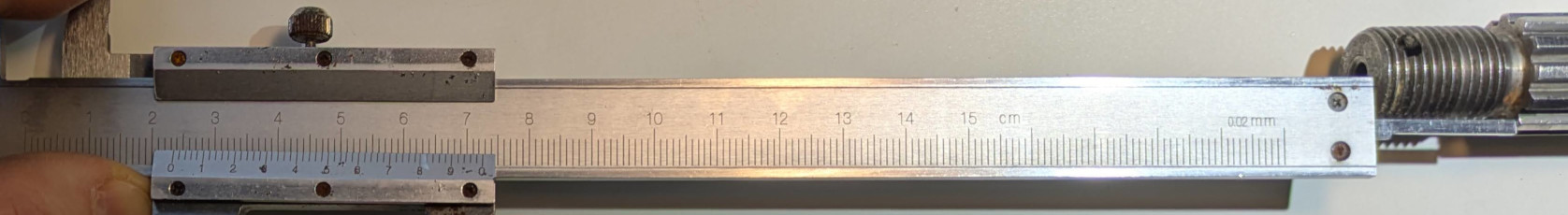

length

23.55 mm drawing: 24.5 mm

undercut diameter

12.9 mm

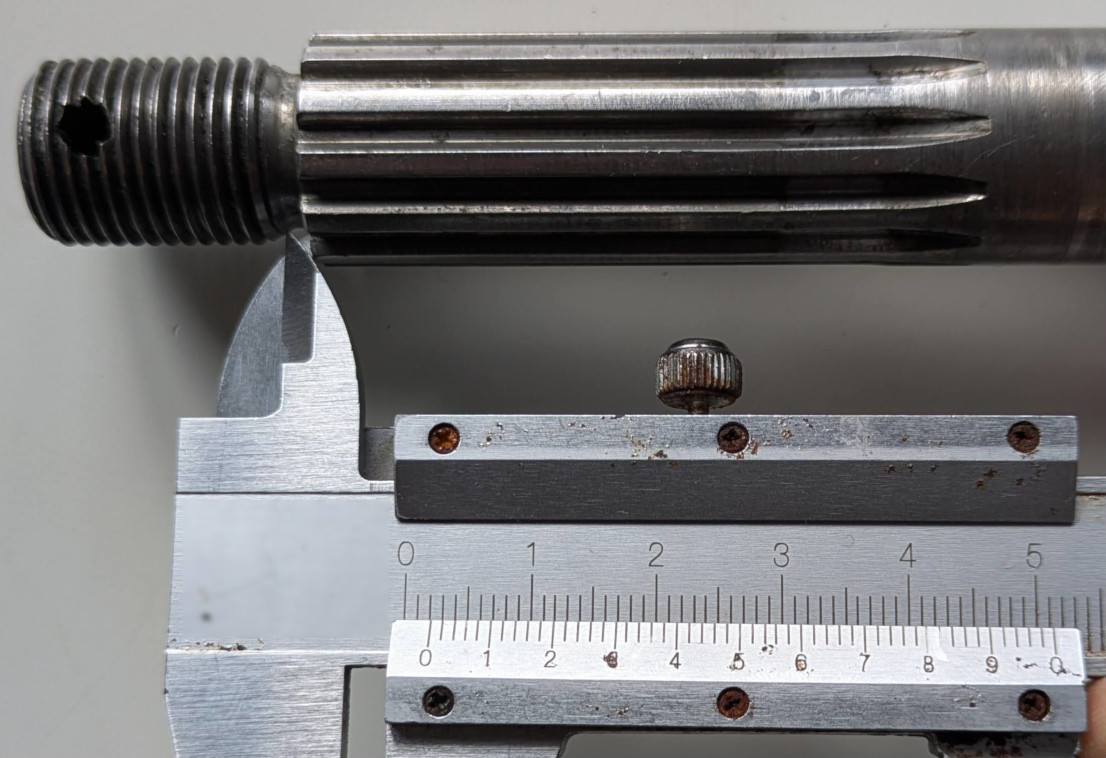

undercut length

2 mm

Motor keyways

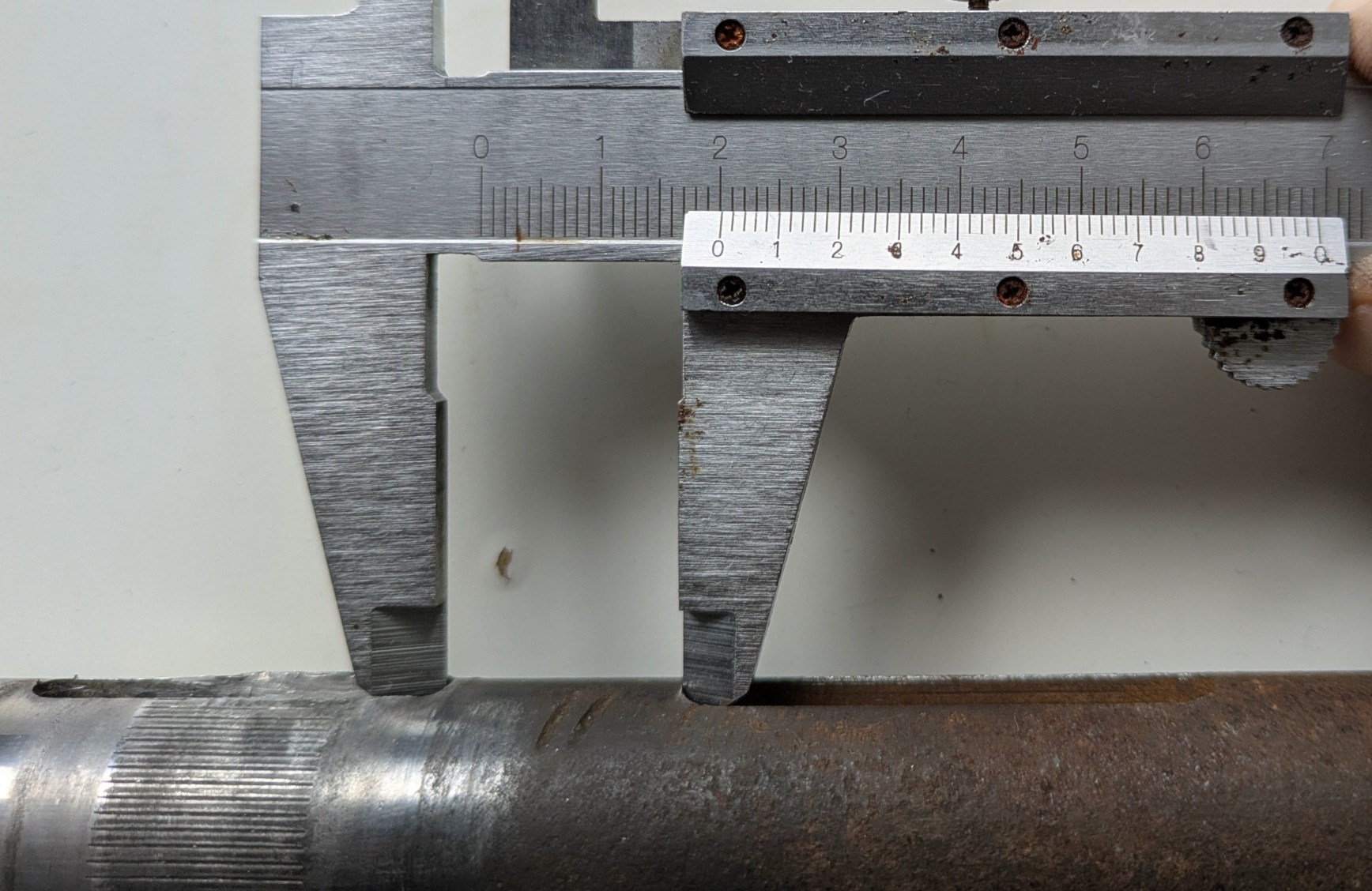

Distance between right Perm keyway and the Thrige keyway: 20.1 mm

According to my mesurements, the distance between the thrige keyway and the left perm keyway is 123.6 + 36 + 19.9 = 179.5 mm

According to the drawing, it’s 359.5 - 159.5 - 22 = 178 mm

Thrige

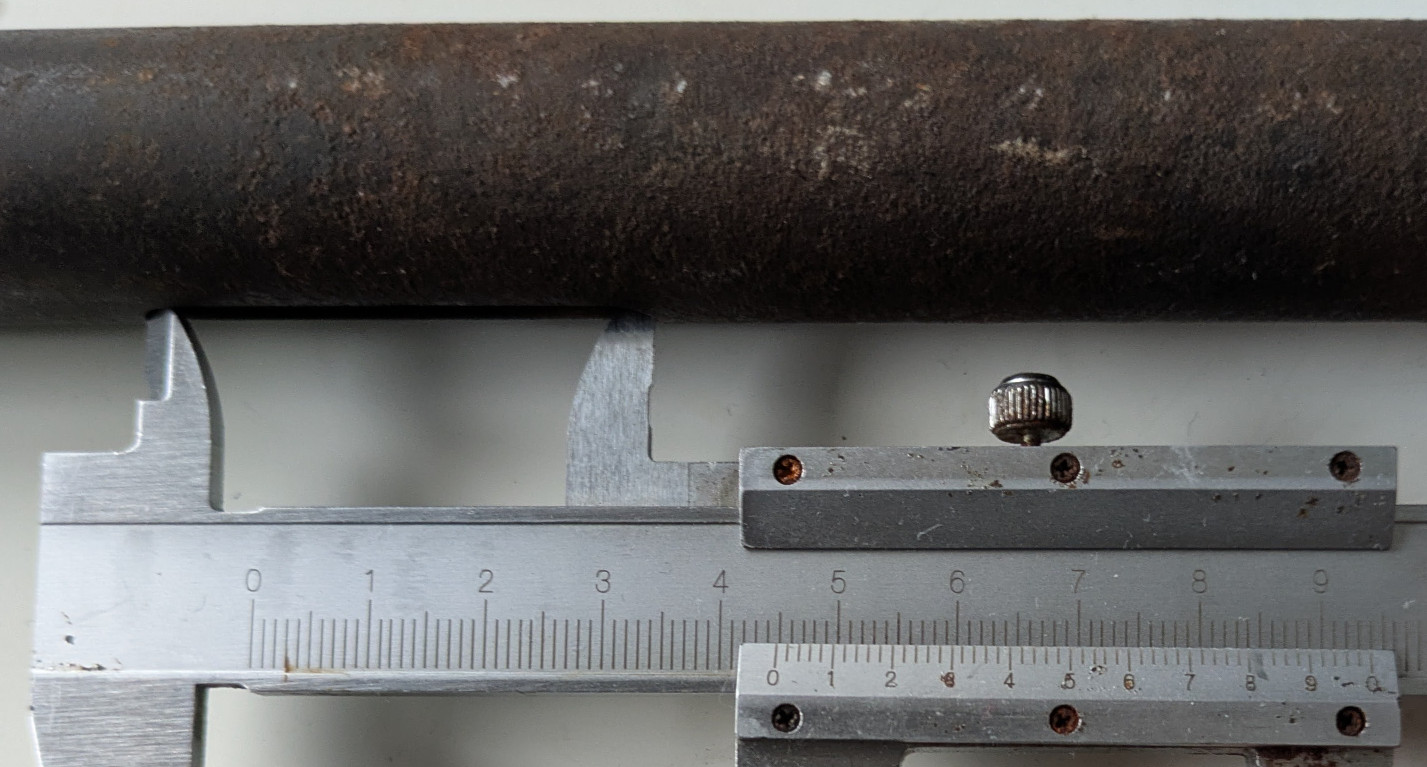

width

44.8 mm drawing: 45 mm

height

7.75 mm drawing: 8 mm

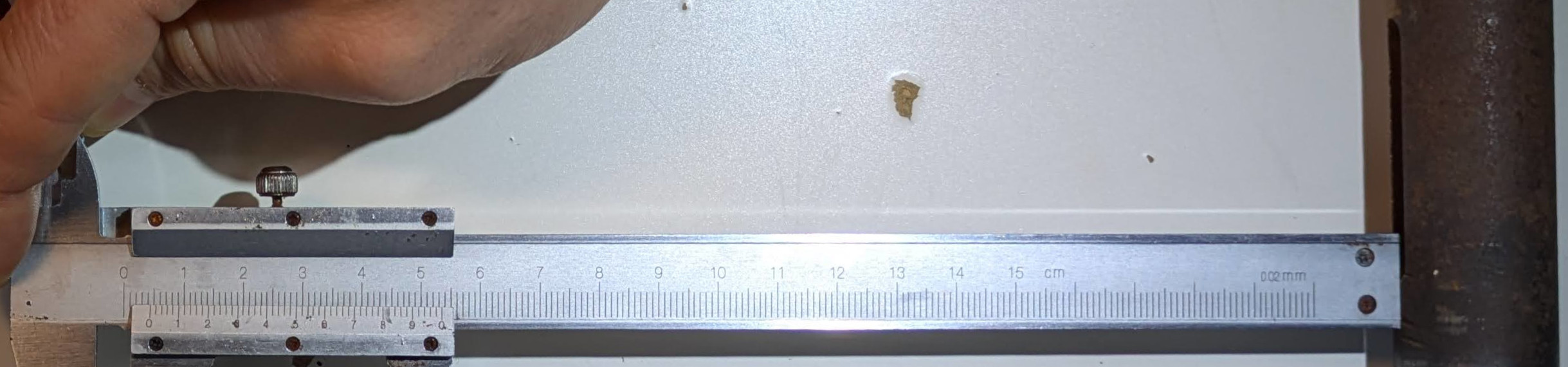

depth

4.4 mm drawing: 4 mm

Perm

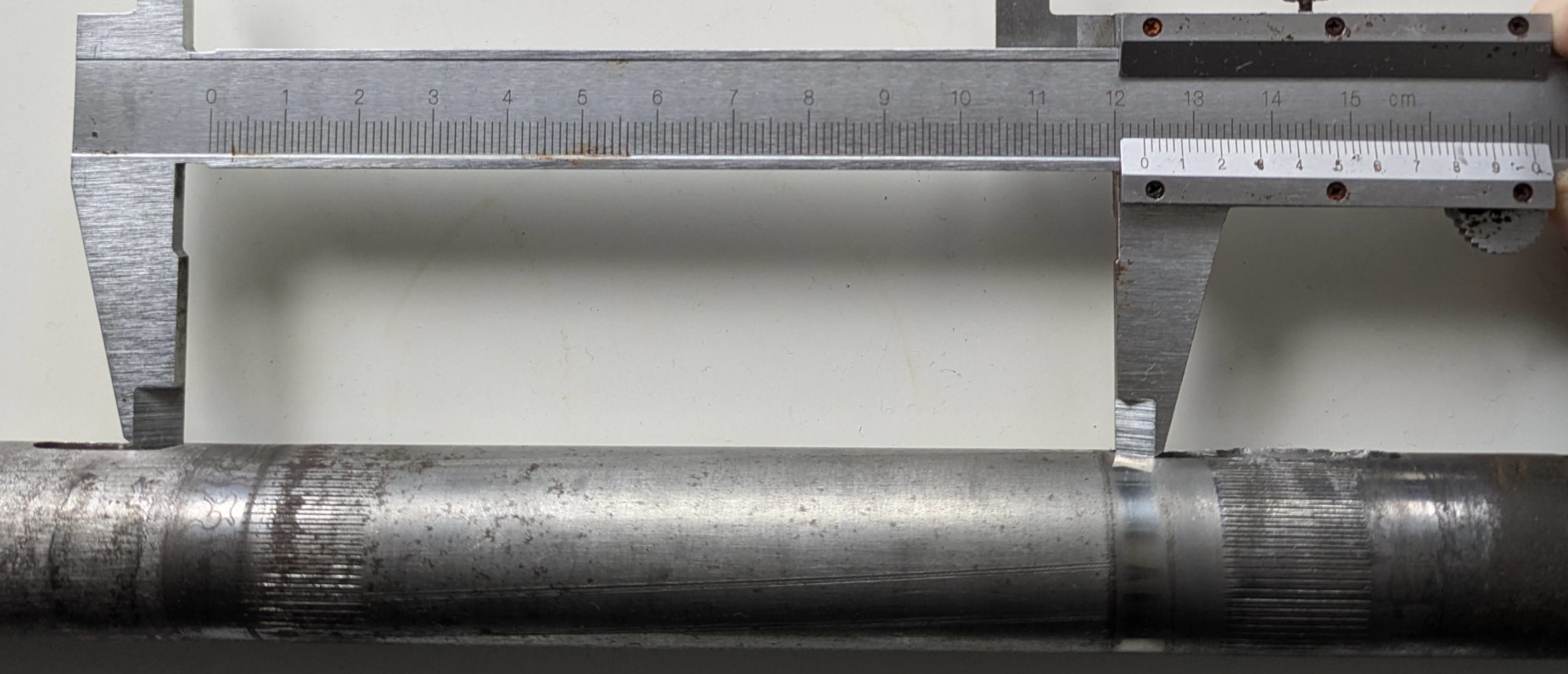

distance between left and right keyways: 123.6 mm

Left keyway

distance to bearing

60 mm drawing: 159.5 - 100 = 59.5 mm

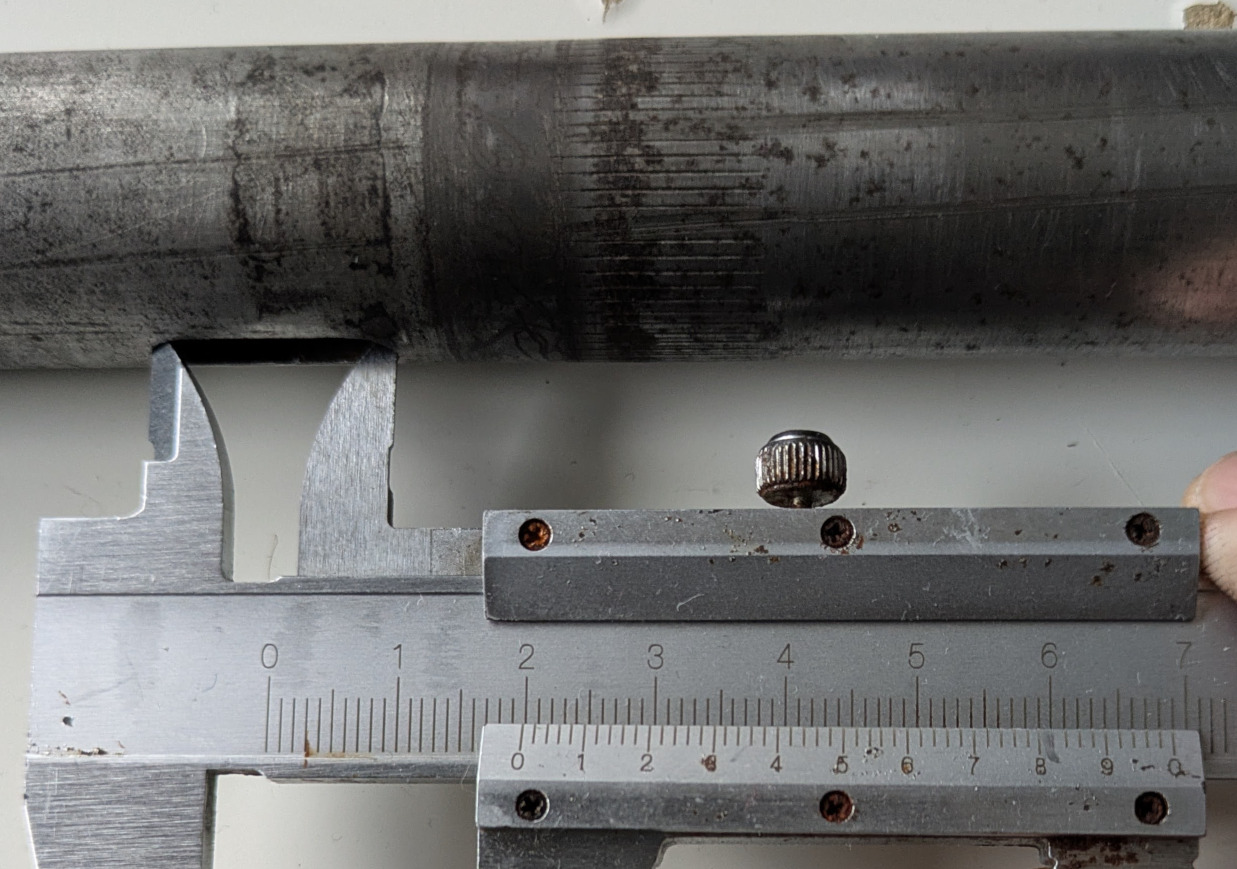

width

19.9 mm drawing: 22 mm

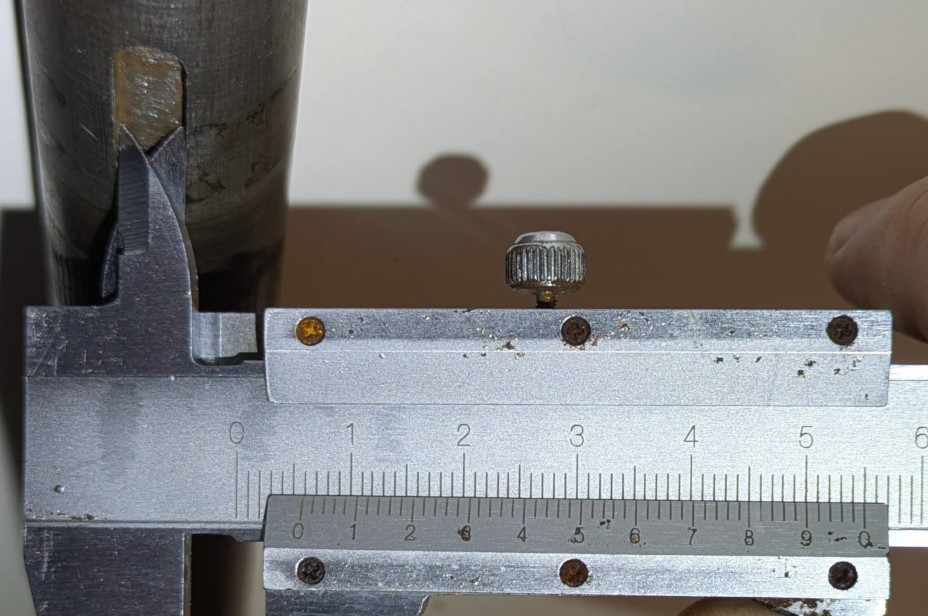

height

5.9 mm drawing: 6 mm

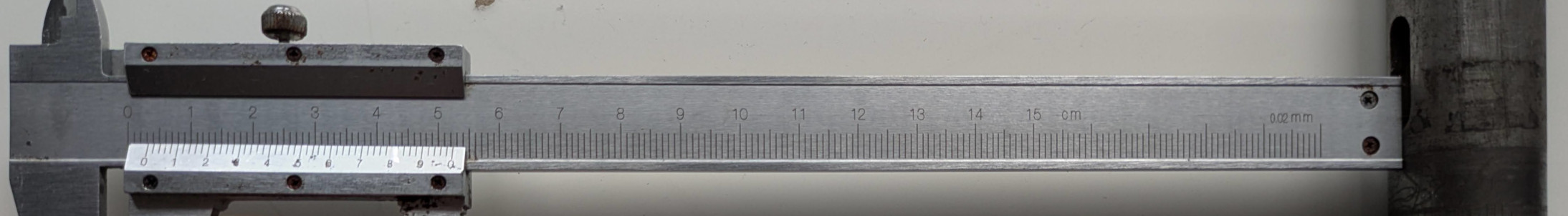

depth

3.3 mm drawing: 4.5 mm

Right keyway

This keyway seems to have gotten added to facilitate mounting the Perm motor the other way around so that it rotates in its design direction when driving forward (see this elektroauto-forum post).

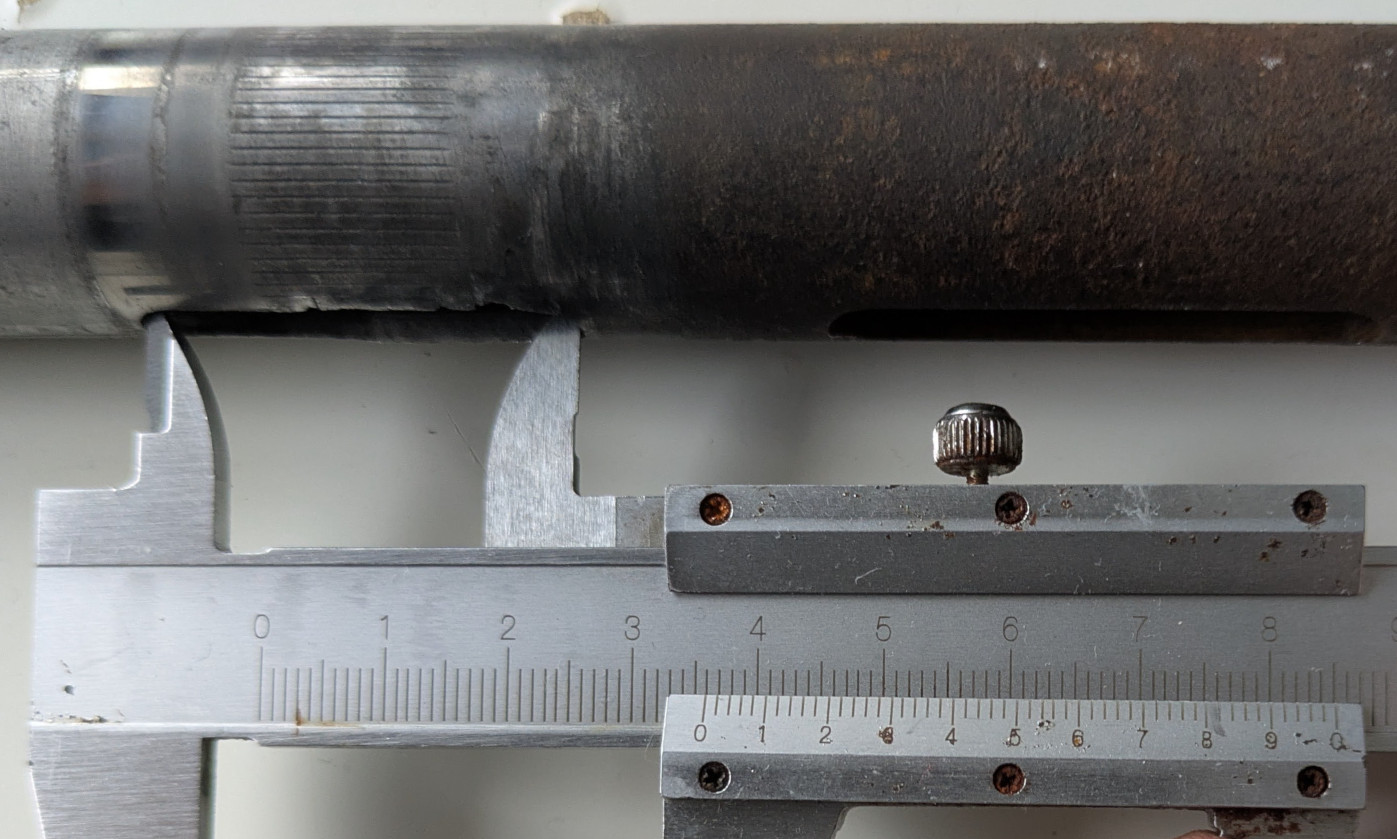

width

36 mm

height

6 mm

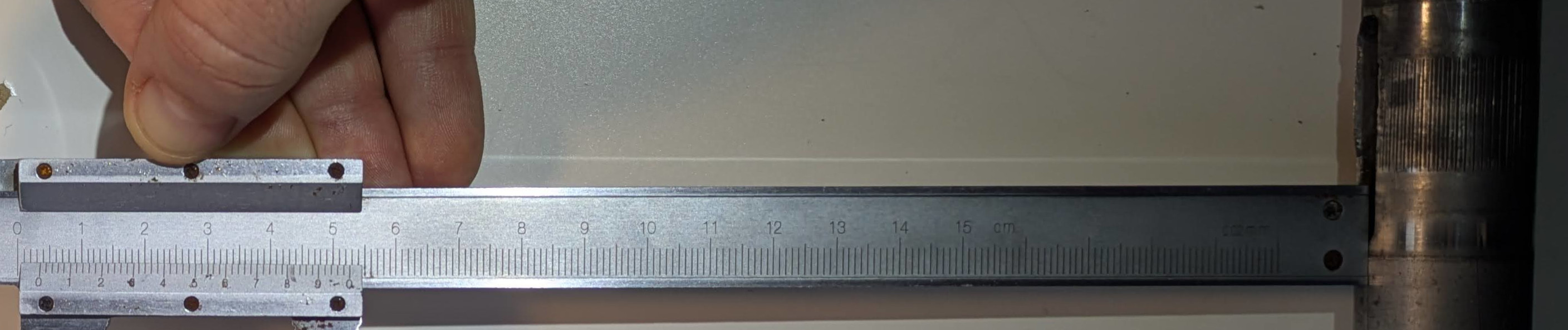

depth

3.55 mm
